eva5036

Simple control and three glassware configurations - diagonal, vertical, or cold finger condensing depending on your application and space requirements. All configurations are available with plastic-coated glass for additional safety. Choose the diagonal condenser where height space is limited, while the vertical condenser is suitable where bench space is limited or in fume hoods. The cold finger condenser is the option to select if you don’t have a constant water supply for cooling the evaporated solvent.

Digital control for reproducible results
Versatile - can be orientated for left or right handedness
Simple, counterbalanced lift mechanism
PTFE/glass liquid pathway for chemical inertness
Long-life graphite impregnated PTFE vacuum seal
Efficient flask and vapour tube ejection system

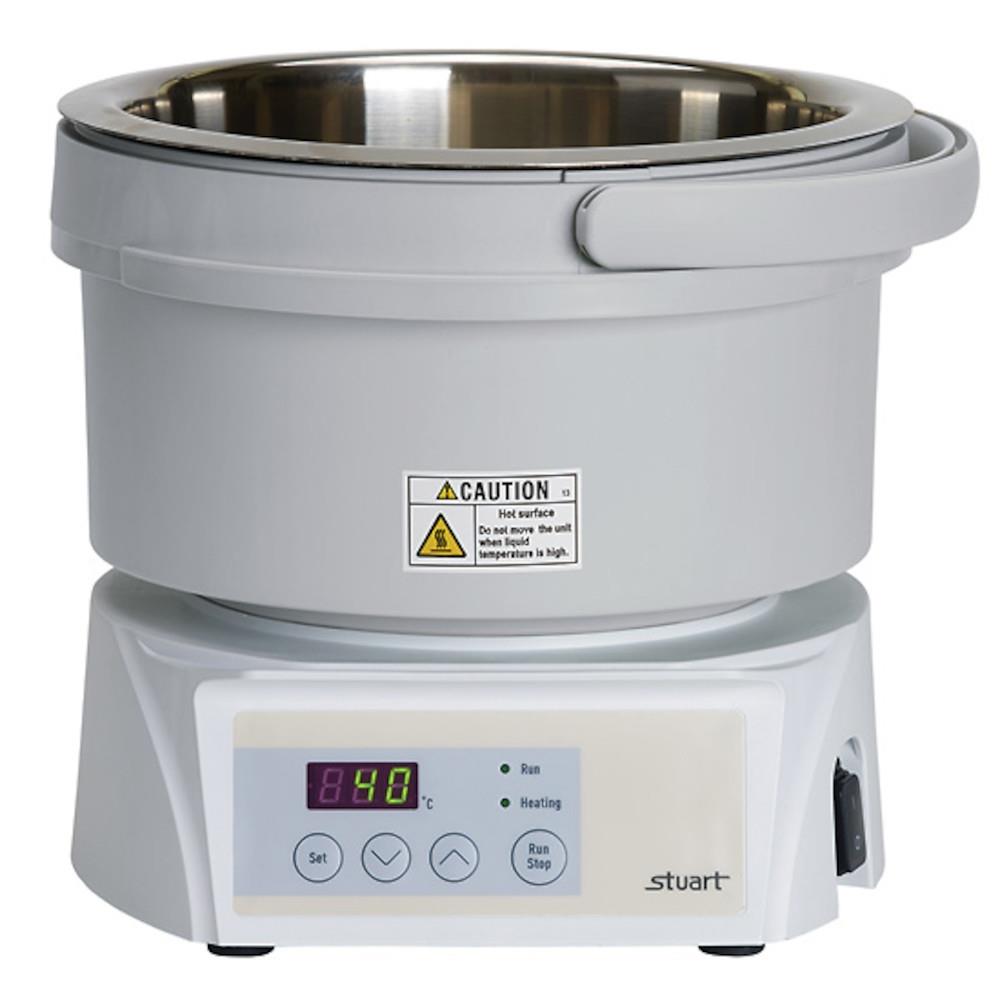

Plastic-coated glassware is limited to 80°C, use only with water bath model EVA5010

Product	Plastic Coated	Glass Condenser Orientation	Contents
EVA5036	N	Diagonal	Diagonal coil condenser, vapour tube for diagonal condenser, 1L receiving flask, 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, and spherical joint clip
EVA5038	Y	Diagonal	Plastic-coated diagonal coil condenser, vapour tube for diagonal condenser, plastic-coated 1L receiving flask, plastic-coated 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, and spherical joint clip
EVA5040	N	Vertical	Vertical coil condenser, vertical coil adaptor, vapour tube for vertical condenser, 1L receiving flask, 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, spherical joint clip, cooler holder, support bar clamp, and cooler support bar
EVA5042	Y	Vertical	Plastic-coated vertical coil condenser, plastic-coated vertical coil adaptor, vapour tube for vertical condenser, plastic-coated 1L receiving flask, plastic-coated 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, spherical joint clip, cooler holder, support bar clamp, and cooler support bar
EVA5044	N	Vertical, cold finger	Dewar condenser, vertical coil adaptor, vapour tube for vertical condenser, 1L receiving flask, 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, spherical joint clip, cooler holder, support bar clamp, and cooler support bar
EVA5046	Y	Vertical, cold finger	Plastic-coated Dewar condenser, plastic-coated vertical coil adaptor, vapour tube for vertical condenser, plastic-coated 1L receiving flask, plastic-coated 1L pear-shaped flask, feed tube with stopcock, vacuum seal, conical joint clip, spherical joint clip, cooler holder, support bar clamp, and cooler support bar
