Hanna Instruments HI-98190 Professional Waterproof pH/ORP Meter

Code: phm0346 D2-102

The HI-98190 (PHM0346) and HI-98191 (PHM0348) combine all of the features of a bench top into a portable IP67 rated waterproof enclosure making them one of the most versatile meters on the market. ...


read more

Your Price
$922.49 EACH
REQUEST

The HI-98190 (PHM0346) and HI-98191 (PHM0348) combine all of the features of a bench top into a portable IP67 rated waterproof enclosure making them one of the most versatile meters on the market. Designed for universal applications, PHM0346 measures pH/ORP and temperature, while PHM0348 measures pH/ORP/ISE and temperature. Exchange out the pH probe for an ORP probe to obtain mV readings in the ±2000mV range. PHM0348 adds direct ion concentration readings for ISEs with a choice of units for calibration and display. A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows for intuitive operation in a choice of languages while the extended battery life assures long operation.

  • PHM0346 features the HI-12963 titanium bodied pH/temperature electrode with a quick connect DIN connector to make attaching and removing the probe simple and easy; PHM0348 features the HI-72911B titanium bodied pH/temperature electrode with BNC and RCA connectors
  • Log-on demand feature allows users to store up to 300 sample that can be later transferred to a PC with the HI-920015 USB cable and HI-92000 software
  • IP67 rated waterproof, rugged enclosure
  • CAL Check™ alerts users to problems during calibration including dirty/broken electrodes, contaminated buffer and overall probe condition
  • Automatic or manual temperature compensation, pH sensors incorporate a built-in temperature sensor
  • Up to a five-point calibration with seven standard buffers and five custom buffers available.
  • Intuitive keypad - most of the available options such as GLP information, help, range, calibration and backlight have a dedicated button
  • Approximately 200 hour battery life powered by (4) 1.5V AA batteries
  • Supplied with:
    • HI-12963 titanium body pH electrode (PHM0346) or HI-72911B titanium body pH electrode (PHM0348)
    • HI-7662 temperature probe (PHM0348 only)
    • HI-7004M
    • HI-7007M
    • 2 x sachets of electrode cleaning solution
    • Rugged carrying case
    • 2 x 100mL plastic beaker
    • HI-92000 PC software
    • HI-920015 micro USB cable
    • Batteries
    • Instruction manual
    • Quality certificate
CodePHM0346PHM0348
ModelHI-98190HI-98191
pH Range-2.0 to 20.0pH; -2.00 to 20.00pH; -2.000 to 20.000pH-2.0 to 16.0pH; -2.00 to 16.00pH; -2.000 to 16.000pH
pH Resolution0.1pH; 0.01pH; 0.001pH0.1pH; 0.01pH; 0.001pH
pH Accuracy±0.1pH; ±0.002pH±0.1pH; ±0.002pH
pH CalibrationUp to five-point calibration, seven standard buffers and five custom buffersUp to five-point calibration, seven standard buffers and five custom buffers
Temperature CompensationAutomatic or manual from -20.0 to 120.0°CAutomatic or manual from -20.0 to 120.0°C
mV Range±2000mV±2000mV
mV Resolution0.1mV0.1mV
mV Accuracy±0.2mV±0.2mV
Relative mV Offset Range±2000mV±2000mV
ISE Range-From 1.00 E-7 to 9.99 E10 concentration
ISE Resolution-3 digits 0.01; 0.1; 1; 10 concentration
ISE Accuracy-±0.5% of reading (monovalent ions), ±1% of reading (divalent ions)
ISE Calibration-Up to five point calibration, seven standard solutions available
Temperature Range-20.0 to 120.0°C-20.0 to 120.0°C
Temperature Resolution0.1°C0.1°C
Temperature Accuracy±0.4°C±0.4°C
Slope CalibrationFrom 80 to 110%From 80 to 110%
Log-on-demand200 samples (100 each pH/mV range)200 samples (100 each pH/mV range)
PC ConnectionOpto-isolated USB with HI-92000 software and micro USB cableOpto-isolated USB with HI-92000 software and micro USB cable
Input Impedance1012Ω1012Ω
Battery Type1.5 C AA batteries (4)1.5 C AA batteries (4)
Auto-offUser selectable; 5, 10, 30, 60 min, disabledUser selectable; 5, 10, 30, 60 min, disabled
Environment0 to 50°C; RH 100 % IP670 to 50°C; RH 100 % IP67
Dimensions/Weight185 x 93 x 35.2mm/400g185 x 93 x 35.2mm/400g

FEATURED

Code
Description
Unit Size
List Price
Qty
PHE1146

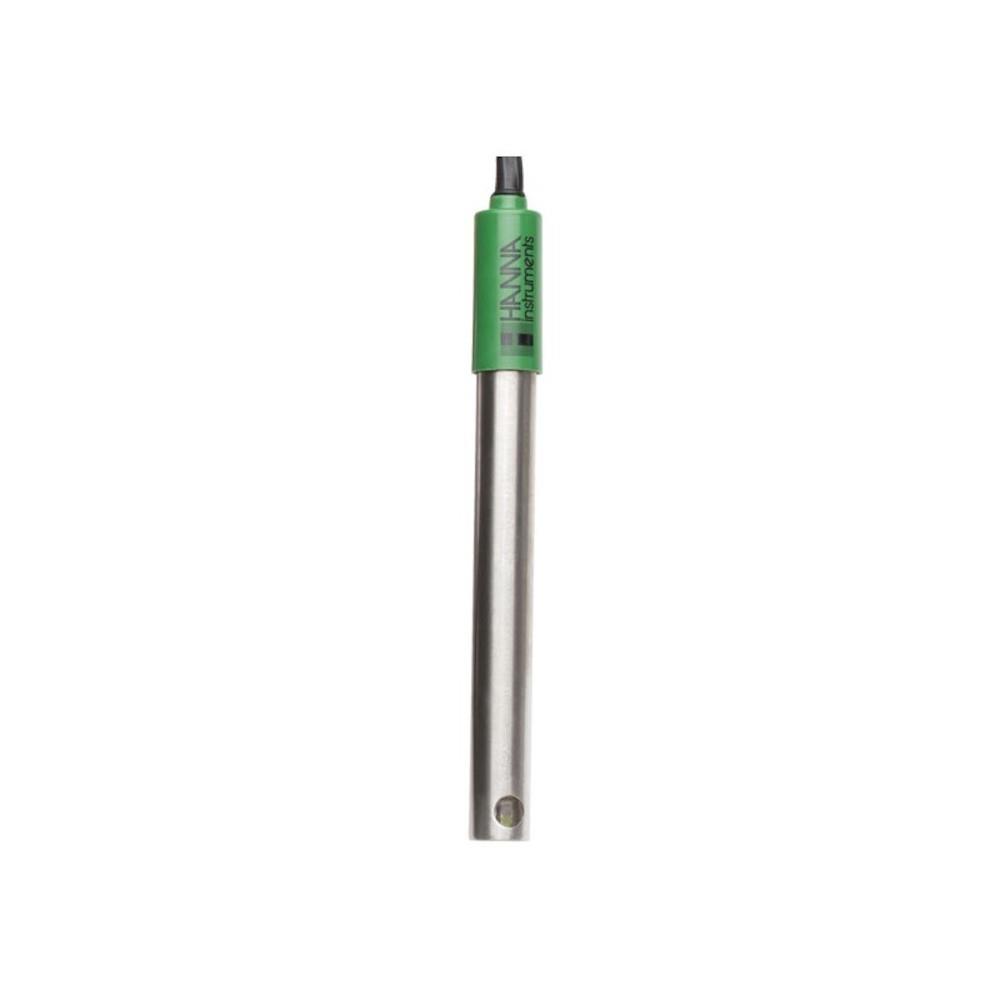

Hanna HI-12963 pH Electrode for use with Wastewater

Unit:EACH
List Price: $277.82
Source:List Price
ADD
Dims, w x d x h, mm93 x 35 x 185
Range, pH-2 to 20
