flu1010

The EzCube Fluorometer features triple fluorescent channels and offers high-sensitivity and specific quantification of nucleic acids and proteins. It accurately measures low concentration samples as small as 1µL, making it ideal for demanding applications, including NGS. Combined with dedicated EzQuant quantification assays, an intuitive touchscreen and Wi-Fi connectivity, EzCube simplifies your precision quantification processes and makes them easy.

Enhanced accuracy and sensitivity: quantify low concentrations of DNA, RNA and protein with just 1µL in seconds, more sensitive than UV absorbance measurements
3 fluorescent channels: expand your application range with triple-channel detection (blue, red and green)
Easy operation: seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator
Flexible data management: easily export your data via USB or Wi-Fi in a quick and easy way
High compatibility with quantification assays: EzCube fluorometer works with EzQuant quantification assays and other commonly used options

Dynamic Range	5 orders of magnitude
Light Sources	Blue LED (max ~480 nm)
	Red LED (max ~630 nm)
	Green LED (max ~535 nm)
Excitation Filters	Blue (430 - 495 nm)
	Red (600 - 645 nm)
	Green (490 - 535 nm)
Emission Filters	Blue (510 - 580 nm)
	Red (665 - 720 nm)
	Green (564 - 650 nm)
Detectors	Photodiodes; measurement capability from 320 - 1100 nm

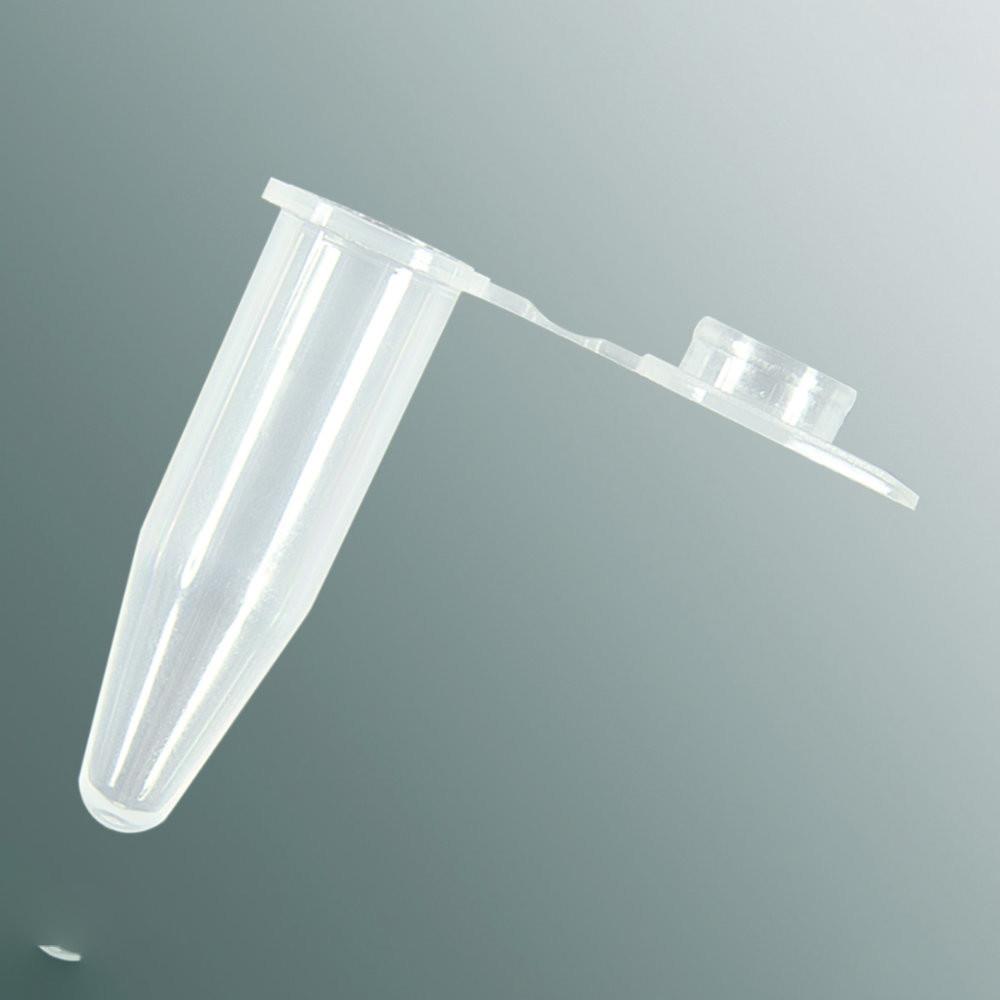

Tube Type	0.5 ml polypropylene thin wall PCR tubes
Operating System	Custom Linux based OS
Display	7” touch screen, 1280 x 800 TFT-LCD
Connectivity	USB-A port x2 (Data output & Wi-Fi connection)
Dimensions (W x D x H)	196 x 248 x 68 mm (7.7 x 9.8 x 3.4 in.)
Weight	1 kg (2.2 lb.)
Glove Compatibility	All common lab gloves
Internal Storage	32 GB flash memory
Operating Voltage	Input: AC 100 - 240 V, 50/60 Hz;
	Output: DC 12 V, 3 A
Certifications	CE
